120-150 kg/h mini floating fish feed extruder machine floating fish feed pellet making machine price in India

Small Feed Pellet Mill Make Extruder
Small floating fish feed pellet mill is feed extrusion equipment. A variety of shapes can be produced, and molds can be customized according to requirements. The product outlet is equipped with a variable frequency rotary cutting device, which can adjust the blade rotation speed to control the cutting speed and length. Feed extruder machine has high output and stable operation. The main components are made of alloy materials and refined through heat treatment. It has the characteristics of high wear resistance and long service life.

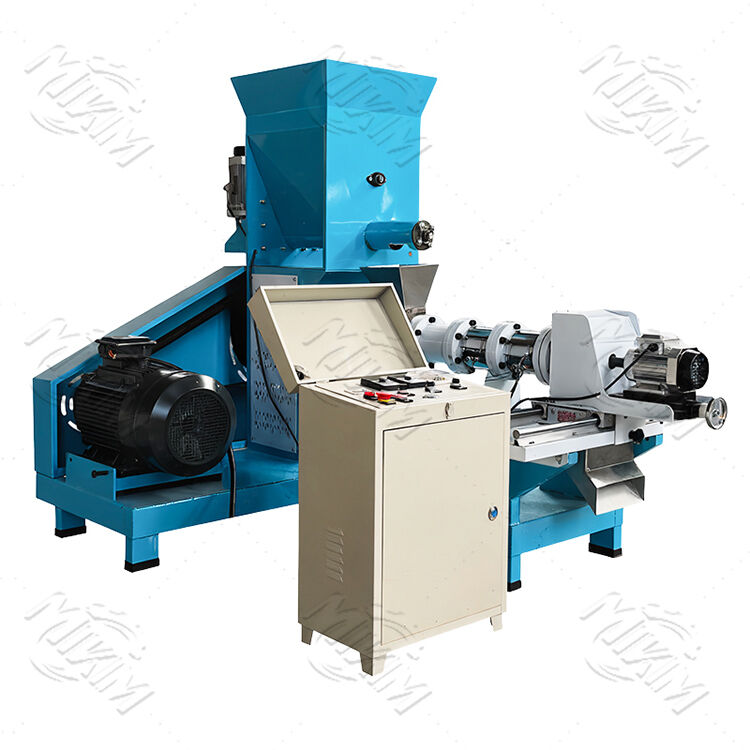

What are the main components of a small fish feed pellet maker machine?

A floating fish feed extruder machine is composed of several critical parts that ensure stable feeding, efficient extrusion, and uniform pellet production. Each component plays a specific role in improving feed quality, preventing blockages, and maintaining continuous operation.

1. Feed Hopper (Material Inlet System)

Location:
Mounted at the top of the machine with a square hopper design.

Function:
The feed hopper is used to load raw materials such as powdered feed and mixed ingredients. It relies on gravity to deliver materials evenly into the feeding system below.

Key Advantage:
Ensures a stable, continuous, and clog-free feeding process, forming the first step in the extrusion production line.

2. Auxiliary Drive (Feeding System)

Location:
Installed on the side of the main machine.

Function:
Provides independent power to control the feeding rate with high precision.

Key Advantage:

• Ensures uniform material input
• Prevents machine blockage
• Stabilizes extrusion pressure and output

3. Extruder Barrel (Expansion Heating Chamber)

Location:
Located in the central section of the machine.

Function:
The extruder barrel is the core working unit. It contains the screw, liner, and heating elements. Inside this chamber, materials undergo:

• High-temperature cooking
• High-pressure compression
• Shear mixing
• Gelatinization and expansion

Key Advantage:
Directly determines pellet quality, including floating ability, density, and digestibility.

4. Cutting Device (Pellet Cutter)

Location:
Mounted at the discharge end of the extruder barrel.

Function:
Cuts the extruded feed into pellets as it exits the die holes.

Key Advantage:
Adjustable cutting speed allows flexible control of pellet length, ensuring uniform size and clean appearance.

5. Cutter Motor (Independent Cutting System)

Location:
Positioned next to the cutting device.

Function:
Drives the cutter blades at high speed with independent speed control.

Key Advantage:
Enables precise pellet length adjustment without affecting the extrusion process.

6. Control Box (Electrical Control System)

Location:
Installed as a separate cabinet beside the machine.

Function:
Acts as the central control unit of the extruder. It includes:

• Start/stop controls
• Temperature monitoring system
• Speed control for screw, feeder, and cutter

Key Advantage:
Supports automated operation, real-time monitoring, and improved safety.

7. Handwheels (Manual Adjustment System)

Location:
Located at the front of the machine.

Function:
Used to adjust cutter distance, die head alignment, and screw positioning.

Key Advantage:
Simplifies die replacement, cleaning, and cutting precision adjustment, improving maintenance efficiency.

8. Outlet (Finished Product Discharge)

Location:
An inclined discharge chute at the bottom of the machine.

Function:
Discharges finished pellets after cutting. It can be connected to conveyors or collection systems.

Key Advantage:
Ensures smooth material flow and improves production efficiency.

Application
1. Floating fish feed pellet maker machine uses corn, soybean (bean cake) animal scraps, etc. as raw materials, and is suitable for the production of feed with different pet flavors such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, minks, foxes, etc.

2. Floating fish feed pellet extruder machine is suitable for farmers and small and medium-sized feed factories.The feed is neatly formed and smooth, it floats on the water surface without sinking for more than 12 hours, does not pollute water sources, and sterilizes to reduce fish diseases.

1. Wide Raw Material Adaptability & Controllable Cost
The small fish feed pellet machine can process a variety of local raw materials, including soybean meal, wheat bran, corn flour, fish meal, straw powder, rice bran, vegetable residue, etc. Farmers can configure feed formulas according to the growth stage of fish (such as fry, adult fish), which not only reduces the cost of purchasing commercial feed (saving 30%-50% of feed cost), but also ensures the rationality of nutrition.

2. Good Pellet Forming & High Water Stability
The small fish feed pellet machine uses high-pressure pressing technology, and the produced feed pellets have high density, moderate hardness, smooth surface, and strong water stability. They are not easy to disperse and dissolve when put into water, which can reduce feed waste, avoid water pollution, and improve the feed utilization rate of fish.

Product Specifications
