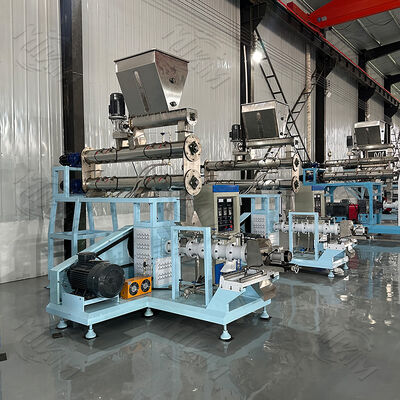

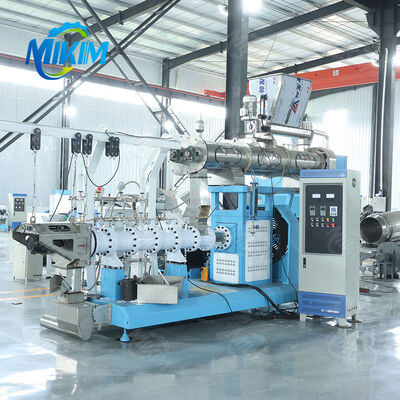

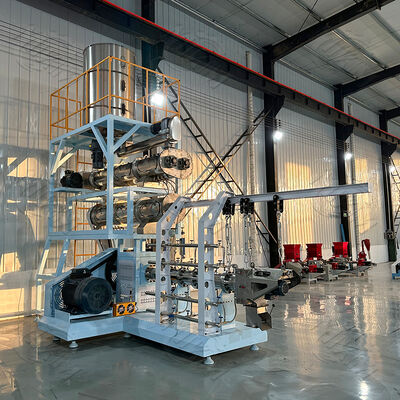

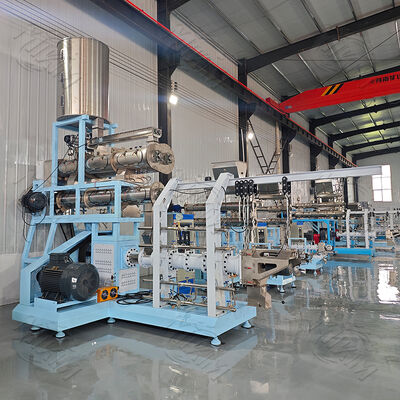

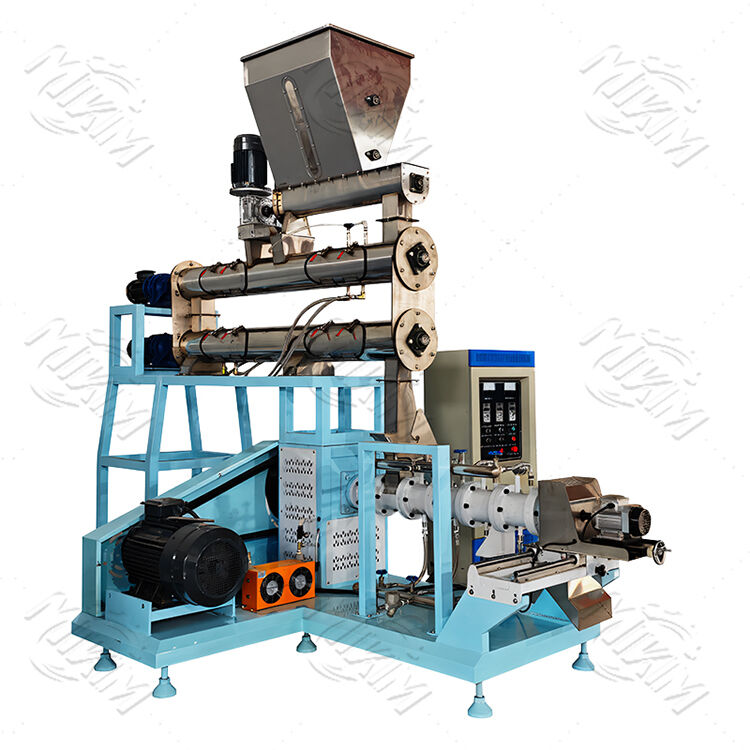

CE Factory Sale Wet Dry Type Floating Fish Feed Mill/shrimp Food Pellets Double Screw Single Screw Extruder Machine
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | MIKIM |
| Chứng nhận: | CE |
| Số mô hình: | DGP40,DGP60,DGP70,DGP80,DGP90,DGP100,DGP120,DGP135,DGP160,DGP200 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | $1500.00 - 9500.00/ Set |
| chi tiết đóng gói: | đóng gói bằng gói xuất khẩu bằng gỗ hoặc tải bằng container |
| Thời gian giao hàng: | 7-10 ngày làm việc |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union |
| Khả năng cung cấp: | 300 bộ mỗi tháng |
|
Thông tin chi tiết |
|||
| Quyền lực: | 30-90 kW | Tiêu chuẩn: | CN |
|---|---|---|---|
| Không gian cần thiết: | 30 x 5 x 3m | Kiểu xử lý: | Phun ra |
| Đặc trưng: | Liên tục & tự động | Lợi thế: | Kết nối dễ dàng với máy đóng gói |
| Khuôn: | 6pcs miễn phí | Bảo đảm: | một năm |
| Hướng dẫn vận hành: | Phiên bản tiếng Anh | Hệ thống điều khiển: | điều khiển PLC |
| nguyên liệu thực phẩm: | thịt, đậu, rau, v.v. | Từ khóa: | Máy làm dải thịt |
Mô tả sản phẩm
- All fish food equipment made of stainless steel
- Fully continuous and automatic production line
- Basic fish food formula provided according to requirements
- Various final product shapes and sizes by changing mould
- Different size moulds supplied free of charge
- Optional packing machine for complete production line
Our engineers design layout drawings according to your factory dimensions for optimal fish feed machine placement.
| Model | Capacity (t/h) | Main Power | Feeding Power | Screw Diameter | Cutting Power | Conditioner Power | Weight |
|---|---|---|---|---|---|---|---|
| DSP85 | 0.35-0.4 | 22kw | 1.1kw | 80 | 0.75kw | 1.5kw | 1000kg |
| DSP90 | 0.5-0.6 | 30kw | 1.1kw | 90 | 1.1kw | 2.2kw | 2000kg |
| DSP100 | 0.6-0.7 | 37kw | 1.1kw | 100 | 1.1kw | 3kw | 2100kg |
| DSP120 | 0.7-0.8 | 55kw | 1.1kw | 120 | 1.5kw | 3kw | 2200kg |
| DSP135 | 1.0-1.5 | 75kw | 1.5kw | 135 | 2.2kw | 5.5kw | 3200kg |
| DSP145 | 2.0-3.0 | 90kw | 2.2kw | 145 | 2.2kw | 7.5kw | 4000kg |
| DSP160 | 3.0-4.0 | 110kw | 2.2kw | 160 | 3kw | 11kw | 4500kg |
| DSP175 | 4.0-5.0 | 132kw | 3.0kw | 175 | 3kw | 15kw | 5000kg |
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran, wheat bran, fish powder, bone powder, etc.
Fish feed pellet with customized colors, floating and sinking types, customized lengths, and diameters from 0.2mm to 20mm
Mixer → Screw Conveyor → Twin Screw Extruder → Air Conveyor → Dryer → Hoister → Flavoring Drum and Oil Sprayer → Cooling Machine → Packing Machine
Usage: Mix raw materials evenly with fast speed and no leakage
Type: Vertical and horizontal type
Motor: 3kw, 4kw, 7.5kw etc.
Capacity: 20kg/time to 500kg/time
Material: Stainless steel, carbon steel
Usage: Extrude raw materials into required shape and size using mould
Model: DSE65, 70, 75, 90, 95, 120, 135
Motor: 22kw to 110kw
Capacity: 100kg/h to 10 ton/h
Material: 38CrMoAl stainless steel screw, carbon steel
Usage: Dry expanded food through "S" passage to increase shelf life
Type: Electrical, steam, gas fired, diesel fired heating
Model: KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity: 100kg/h to 10 ton/h
Material: Stainless steel, carbon steel
Usage: Mix oil and flavors on fish feed surface
Type: Single and double flavoring drum
Motor: 0.75kw
Capacity: 100kg/h to 10 ton/h
Material: Stainless steel
Usage: Pack fish feed with required weight
Type: Automatic
Process: Manual bag placing → Automatic filling → Automatic weighing → Automatic bag conveyor → Automatic bag sewing or heat sealing
Weight Range: 1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material: Stainless steel, carbon steel
- Factory layout design according to your factory size
- Basic formula provision
- Pre-shipment machine inspection
- Overseas installation and commissioning
- Technical training for installation, operation, and maintenance
- Comprehensive technical support and maintenance guidance
- English version manuals for installation, operation, service, and maintenance
Established in 1989, Tianjin Mikim is a professional manufacturer of extrusion puffing equipment. Our company has gathered industry experts with rich experience and remains committed to research and development of extrusion puffing equipment. We provide comprehensive intelligent equipment solutions to help customers achieve goals of reducing energy consumption, improving quality, and enhancing efficiency.
We specialize in commercial efficiency of extrusion puffing machinery, including twin-screw puffers, single-screw puffers, and other puffing equipment. Our focus extends to aquatic and pet food puffed feed production line research and development. Our core competitiveness lies in delivering high efficiency, superior quality, and outstanding performance through excellent puffing technology.
